Screen Boxes

Screen Box Family

1.5" Screen Box

  • Port adapters available.
  • The lid has an embedded Viton® O-ring seal.
  • Sight glass for viewing flow.
  • Interchangeable screens: 0.25", 40 mesh, and 20 mesh.
image of the 1.5 inch Screen Box with Fine and Coarse Screens

4" Screen Box

  • 3" Adapters available
  • For anyone who has ever cussed at the old style strainers (complete with 16 rusted bolts) this is a 'must have'!
  • The body is cast aluminum with an oil-jacketed base. Heat conduction up the sidewalls is amazingly fast. Two cam lock latches secure the lid with an embedded Viton® O-ring seal. Take the lid on and off as often as like, the Viton® O-ring reseals every time! Best of all, you can be in and out in less than 10 minutes!
  • Interchangeable screens: 0.125" Round Mesh and 0.45" Square Mesh.
  • HTO/Steam Heat Traced. Electric Heat available.

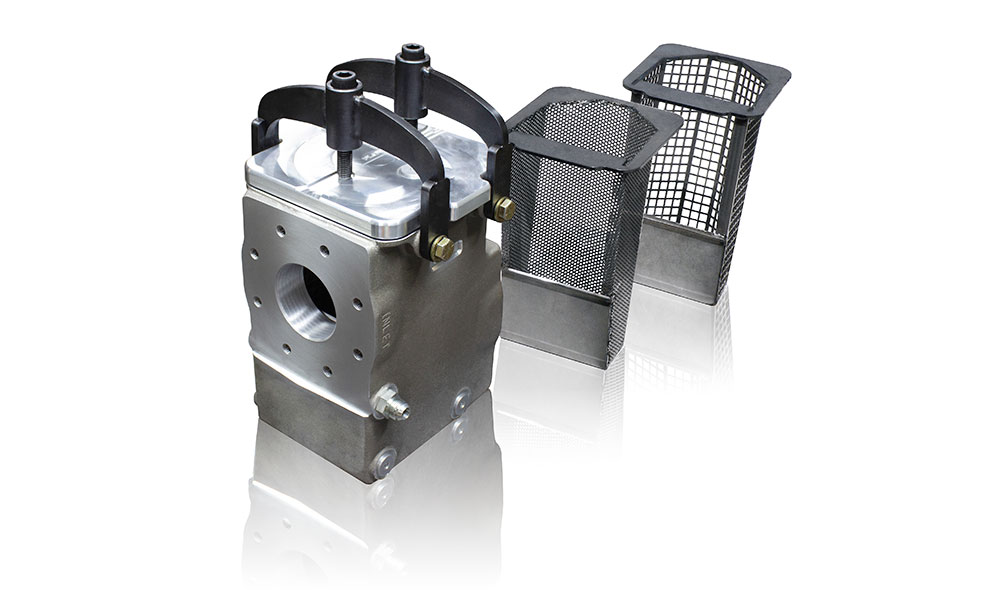

image of the 4 inch Screen Box with Fine and Coarse Screens

6" Screen Box

  • 0.5" Square Mesh
  • The body is cast aluminum with an oil-jacketed base and centering post.
  • The lid has an embedded Viton® O-ring seal.
  • HTO/Steam Heat Traced. Electric Heat available.
  • 900R Skid with 6" Screen Box

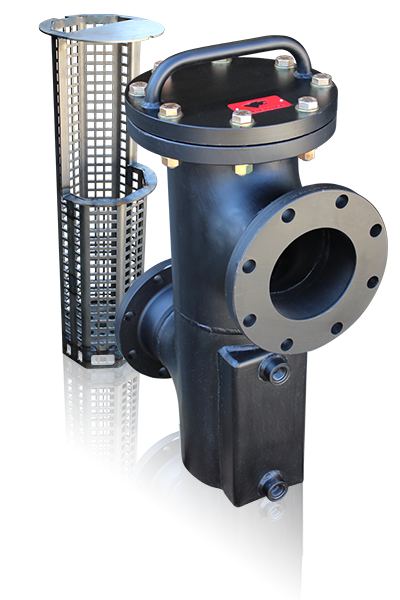

image of the 6 inch Screen Box with Screen
close-up image of a screen box lid with levering latches for quick access
image of the Viton Seal on the screen box lid
image of a complete skid assembly with a screen box to complete the air-tight system for accurate metering
