Crude Oil Truck Pumps

BearCat Pumps Crude Oil Truck Pumps


BearCat Pumps' B-Series Pumps (Crude Oil Truck Pumps) are external gear, positive displacement pumps designed specifically for pumping crude oil. They utilize adjustable relief valves for relief in both directions. Hardened steel, self-lubricating bushings are a standard feature in these crude oil pumps as they increase the useful and predictable life span in the field.

Common applications for the Crude Oil Truck Pumps include:

  • Primary Loading and Unloading Pump on a Crude Oil Truck
  • Oil Supply through a Micro Motion® Coriolis (Mass Flow) Meter
  • Crude Oil Transfer
  • Train Car Loading and Unloading Pump

Relief Valve

One of the prominent features of the BearCat Pumps Crude Oil Truck Pump is its endplate/relief valve design. The modularity of the plate provides mounting on both ends of the pump and, thus, pressure relief in both directions. Because the forward flow is controlled by one end and the reverse flow by the other, each relief valve can be adjusted independently.

No-Leak Lip Seal

The standard Crude Oil Truck Pump comes with a high temperature, no-leak, low-maintenance seal design. Supported internally by a roller bearing, the drive shaft runs precise, thus, prolonging seal life.

Features of our B-Series Crude Oil Truck Pumps include:

  • Heat-treated, pulse-dampening helical gears
  • No Leak driveshaft seal design
  • Dual, built-in, fully heated relief valves (pressure relieving in both directions)
  • Nitride treated shafts
  • Multiple port configurations
  • Flanged ports
  • Ports for heat tracing
  • Can be direct driven inline with a PTO or hydraulic motor or belt and pulley (pillow block bearing required for belt and pulley drive)
  • .450 and .600 GPR displacements available
image of No Leak Driveshaft Seal Design
image of Dual Built-in Heated Relief Valves
image of Multiple Port Configurations
image of Nitride Treated Shafts
image of Flanged Ports

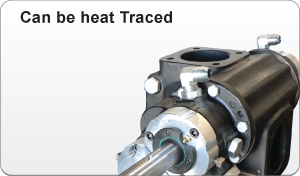

image of Heat Tracing

B-Series Crude Oil Truck Pumps come in Two Displacements:


image of a 450B Crude Oil Truck Pump
450 Pump Flow Rate Chart


image of a 600B Crude Oil Truck Pump
600 Pump Flow Rate Chart
